Hyundai Three-phase Induction Motor 10HP 7.5KW 6P 380V Horizental B3

Hyundai Motor 10HP 7.5KW 6P 380V

Horizontal B3

Contact

Tel: +82-51-903-1302

Mobile: 010-9311-1302

email: cktech@safetycleaner.com

        cktech2016@gmail.com

 CKTECH Ship/Marine, Product/Service Information Guide Matching Platform

https://www.cktechb2b.com/

CKTECH  Shipping/Marine Equipment Shopping Mall Shipping/Marine Equipment Shopping Mall

https://www.cktechb2b.com/

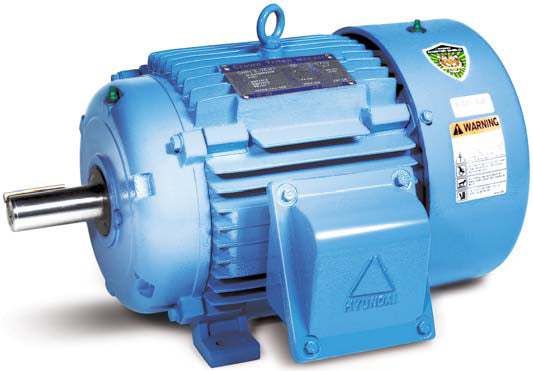

Hyundai Motor

Horizontal / B3

Power(Rated of Output): 7.5KW(10HP )

Pole: 6P

RPM: 1170

Volt(Rated of Voltage): 380V

Electric current(Rated of Frequency): 60HZ

Enclosure(Protection): IP55

Ambient temp(Ambient temperature): AMB 40℃

Weight: 117KG

CKTECH  provides technical guidance for compatible and alternative motors with other motors.

CKTECH can supply to Compatible and replacement motors

(Compatible, product replacement products Subject to change depending on product specifications)

Ex) Hyundai, Hyosung, Heigen, ABB, Siemens, etc.

  Other manufacturers with compatible  Product specifications

Power(Rated of Output) : 0.75kw/1hp - 160kw/214hp

Mounting type: (Plange/Vertical : B5, V1), (Horizontal , B3)

Pole : 2/4/6/8P

Modification of motor and replacement of flanges are possible.

Example) Horizontal type (B3) --> Horizontal and vertical type (B3B5) modify production

Example) Flange replacement fabrication

Flange P. C. D 215 (standard product) ---> Flange P. C. D 165 (Flange replacement product)

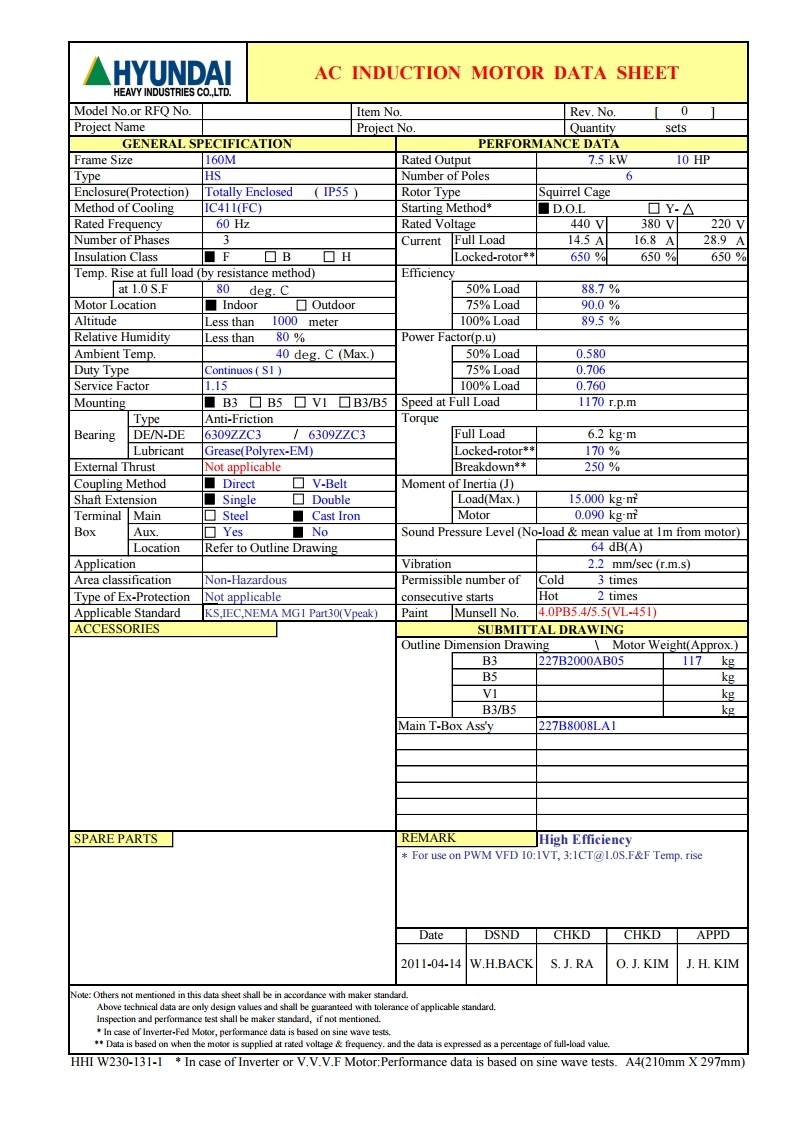

Drawing
